The indexing disc chuck RT series, is a high precision, clamping range, clamp automatic chuck with efficient, well received by customers. Many customers said that the chuck clamping force have how old? Pressure to increase the number of enough?

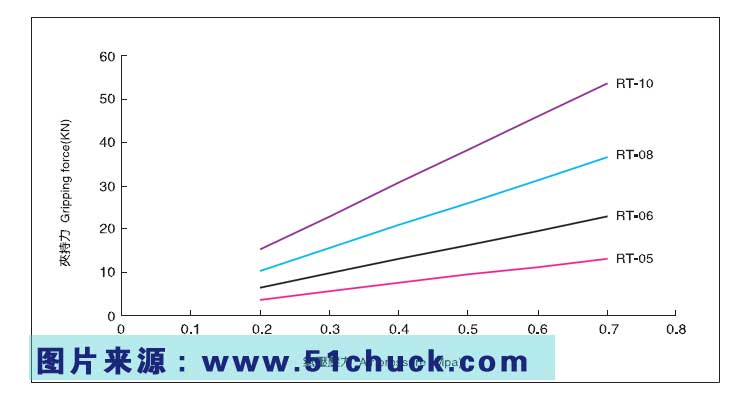

Now I explain it.RT-05: when the pressure reaches 0.2MPa, the clamping force is the force reached 200-300KG, 0.3mpa/500kg force, 0.4mpa/600kg force, up to 0.5mpa/1 tons, 0..6mpa/1.2 tons, 0.7mpa/1.4 tons of force.
RT-06:0.2mpa/600kg force, to 0.3mpa/1 tons of force, to 0.4mpa/1.4 tons, 0.5mpa/1.8 tons, 0.6mpa/2 tons, 0.7mpa/2.3 tons of force.
RT-08:0.2mpa/1 T, 03mpa/1.5 tons, 0.4mpa/2 tons, 0.5mpa/2.5 tons, 0.6mpa/3 tons, 0.7mpa/3.5 tons of force.
RT-10:0.2mpa/1.5 T, 0.3mpa/2.3 tons, 0.4mpa/3 tons, 0.5mpa/3.8 tons, 0.6mpa/4.5 tons, 0.7mpa/5.5 tons of force you
